WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #: 12011
SERIAL #: 27481
SPECIFICATIONS

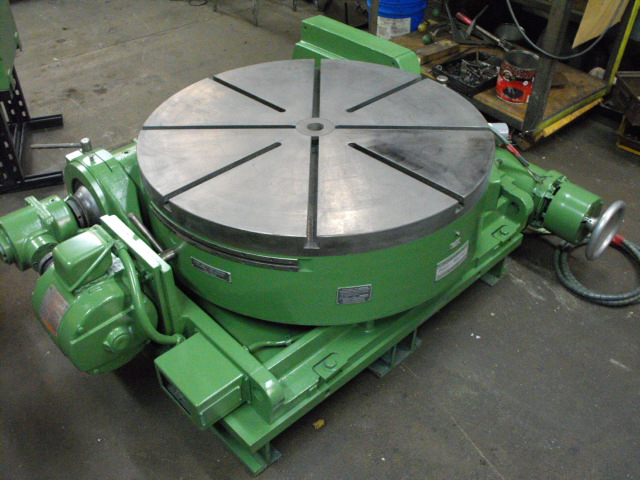

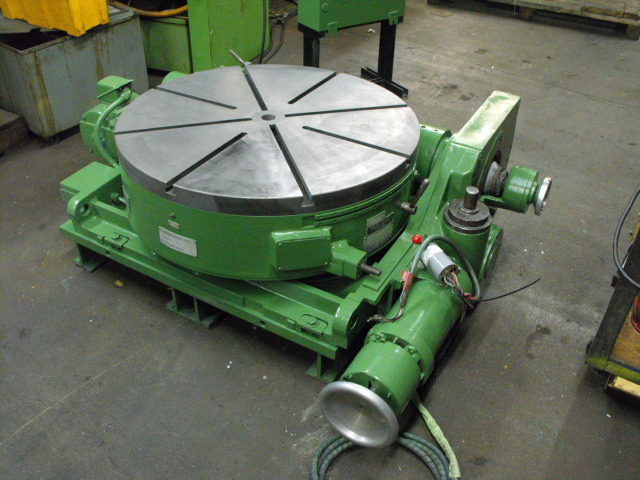

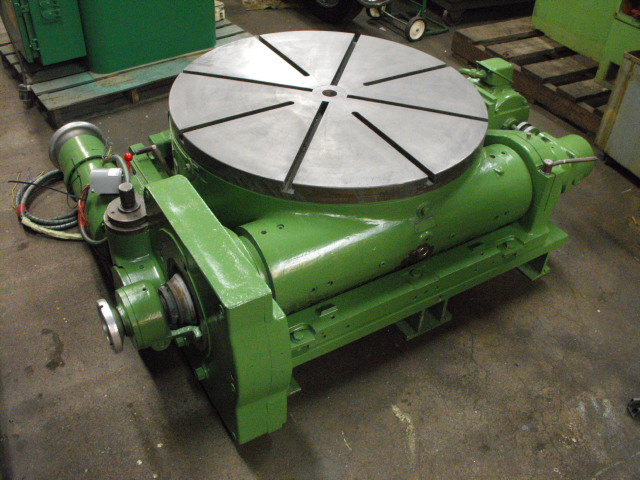

WORKING SURFACE: 36″ DIA
MAX. WEIGHT OF WORK:
. 3500 LBS. HORIZONTAL
. 1000 LBS. VERTICAL
. 1200 LBS. TILTING

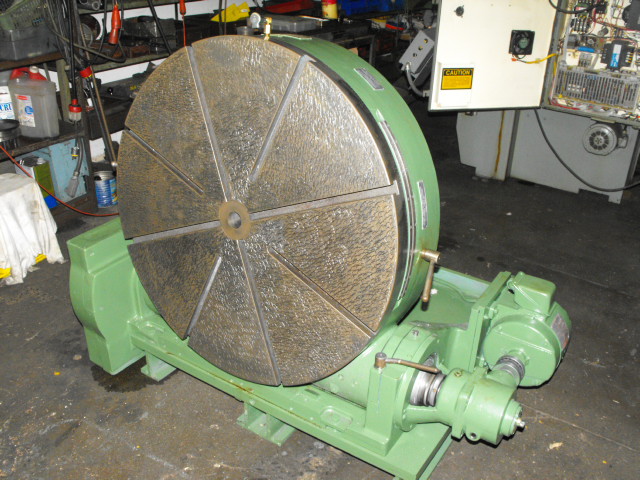

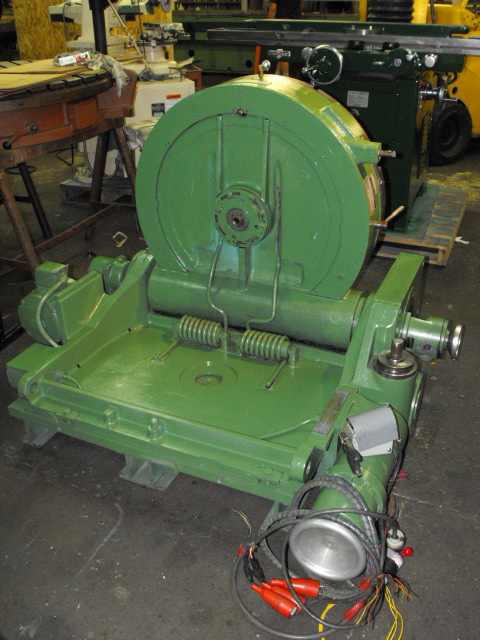

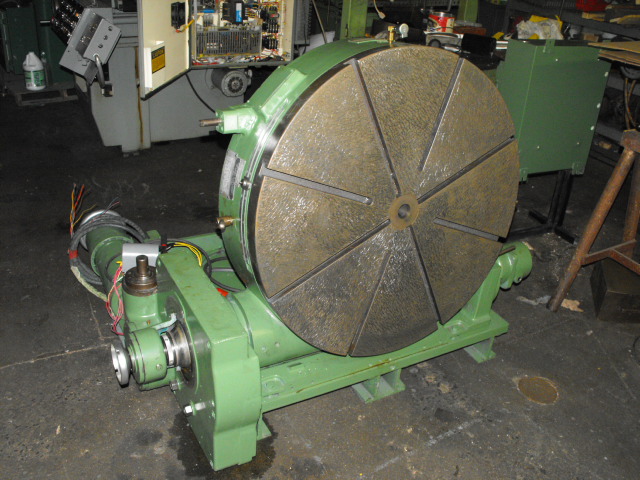

MAX. TILTING: 90 DEGREES
TILTING GRADUATIONS: DEGREES
TILTING VERNIER GRADUATIONS: 1 MINUTE
TABLE GRADUATIONS: DEGREES
TABLE DIAL GRADUATIONS: 1 MINUTE
TABLE VERNIER GRADUATIONS: 2 SECONDS
ROTATION MOTOR: 1 HP
TILTING MOTOR: 3/4 HP
HEIGHT IN HORIZONTAL POSITION: 19-3/4″ (PLUS RISERS)
CENTER HOLE IN TABLE: #40 MM TAPER
NUMBER OF T-SLOTS: 8
OVERALL DIMENSIONS: 45 X 62″
EQUIPPED WITH:
. MOUNTED ON RISERS – ALLOW FOR SURFACE MOUNTING

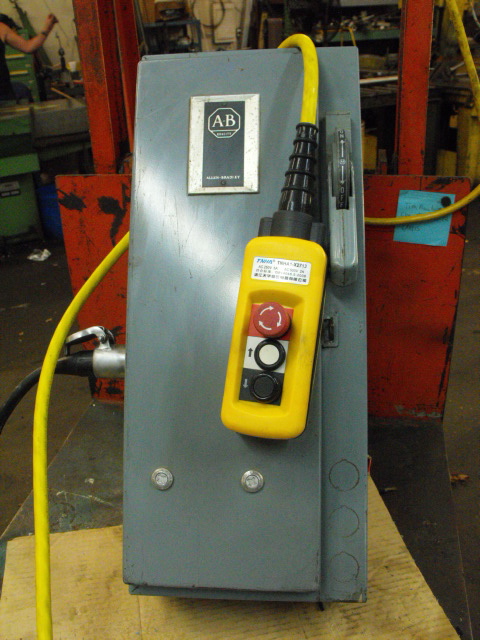

. PUSH BUTTON CONTROLS FOR POWER TILT & ROTATION

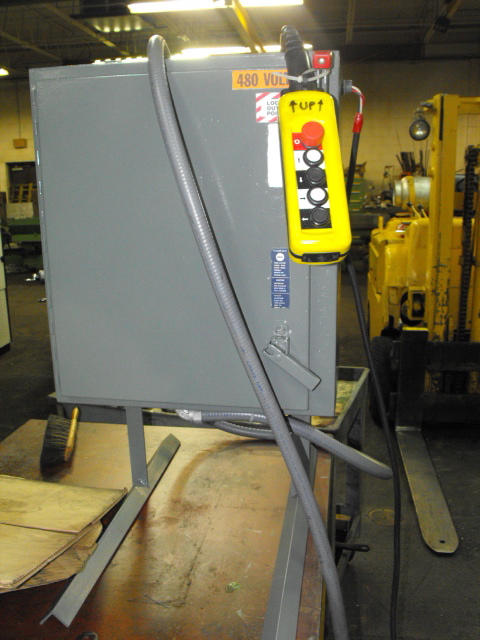

. FREESTANDING ELECTRICAL CABINET
. MAGNETIC BRAKE ON TILTING MOTOR
RE-SCRAPING REPORT AVAILABLE UPON REQUEST
TABLE TOP TYPICALLY FLAT WITHIN .0002″
ELECTRICS: 230/460/3/60 WEIGHT: 3,310 LBS.
LOCATION : FOB BRISTOL, CT
THIS TABLE RE-SCRAPED AND SERVICED, SOLD AS “FULLY OPERATIONAL” GOOD CONDITION.
WARRANTY: IF UNSATISFACTORY, IT MAY BE RETURNED FOR A FULL REFUND OF THE PURCHASE PRICE.
