WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #11998
SERIAL #18647
YEAR BUILT: 1960’S
REBUILT 2015
SPECIFICATIONS
WORKING SURFACE 24″ DIAMETER
MAX WEIGHT OF WORKPIECE:
. 1,200 LBS HORIZONTAL
. 800 LBS VERTICAL
. 500 LBS TILTED
HEIGHT WHEN HORIZONTAL 10.5″

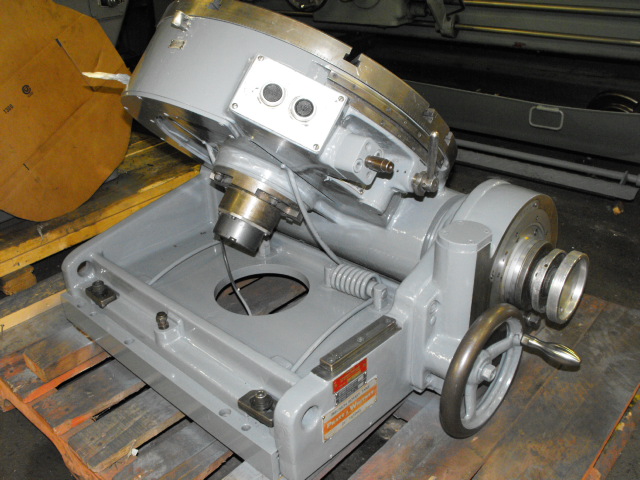

MAXIMUM TILT 90 DEGREES
CENTER HEIGHT AT 90 DEGREES 14.2″
CENTER HOLE (HARDENED & GROUND) #9 B&S
TILTING GRADUATIONS DEGREES
TILT VERNIER CALIBRATION 1 MINUTE
TABLE GRADUATIONS DEGREES
TABLE DIAL GRADUATIONS 1 MINUTE
TABLE VERNIER GRADUATIONS 2 SECONDS
ROTATION MOTOR 1/2 HP 440/3/60

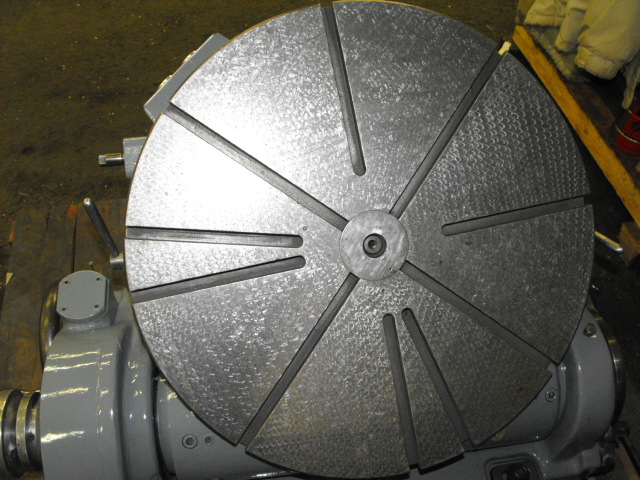

TABLE TOP 8 RADIAL “T” SLOTS
EQUIPPED WITH:
. MANUAL TILTING
. MANUAL & POWER ROTATION
. NEW PUSH BUTTON CONTROLS
NOTE: THIS TABLE WARRANTEED TO BE IN VERY GOOD OVERALL CONDITION
COMPLETE WITH OILERS, HANDLES, BINDERS
ELECTRICS 440/3/60 WEIGHT: 1,250 LBS
LOCATION : FOB BRISTOL, CT
SOLD WITH 30 DAY RIGHT OF RETURN IF UNSATISFACTORY
