WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY # 11924
SERIAL #77100630
YEAR BUILT: 1988
SPECIFICATIONS
TABLE SIZE 12.5 X 34″
TABLE TRAVEL 24″
CROSS TRAVEL 14″
HEAD TRAVEL 16″
SPINDLE TO TABLE TOP 3.5 TO 19.5″
SPINDLE C/L TO COLUMN (THROAT) 16.7″
FEED RATES (X/Y/Z) .010 TO 150 IPM
RAPID TRAVERSE (X/Y/Z) 350 IPM
SPINDLE DRIVE MOTOR 3 HP 220/440/3/60
SPINDLE SPEEDS (VARIABLE) 60 TO 580 RPM (LO)
. 500 TO 4,500 RPM (HI)
SPINDLE TAPER #30 NST
WORKPIECE CAPACITY 660 LBS

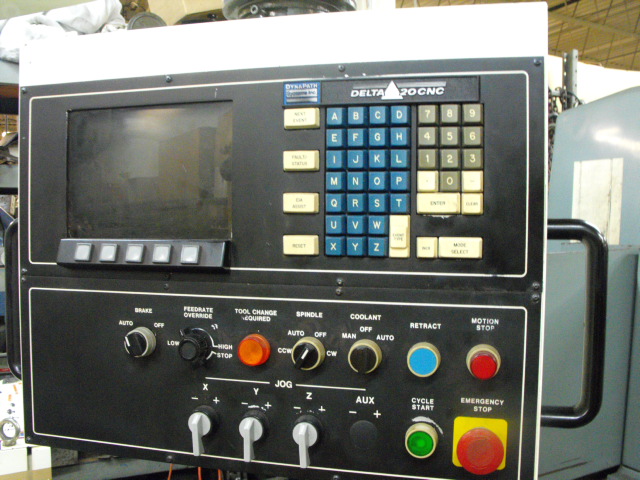

EQUIPPED WITH: DYNAPATH DELTA 20 CNC CONTROL

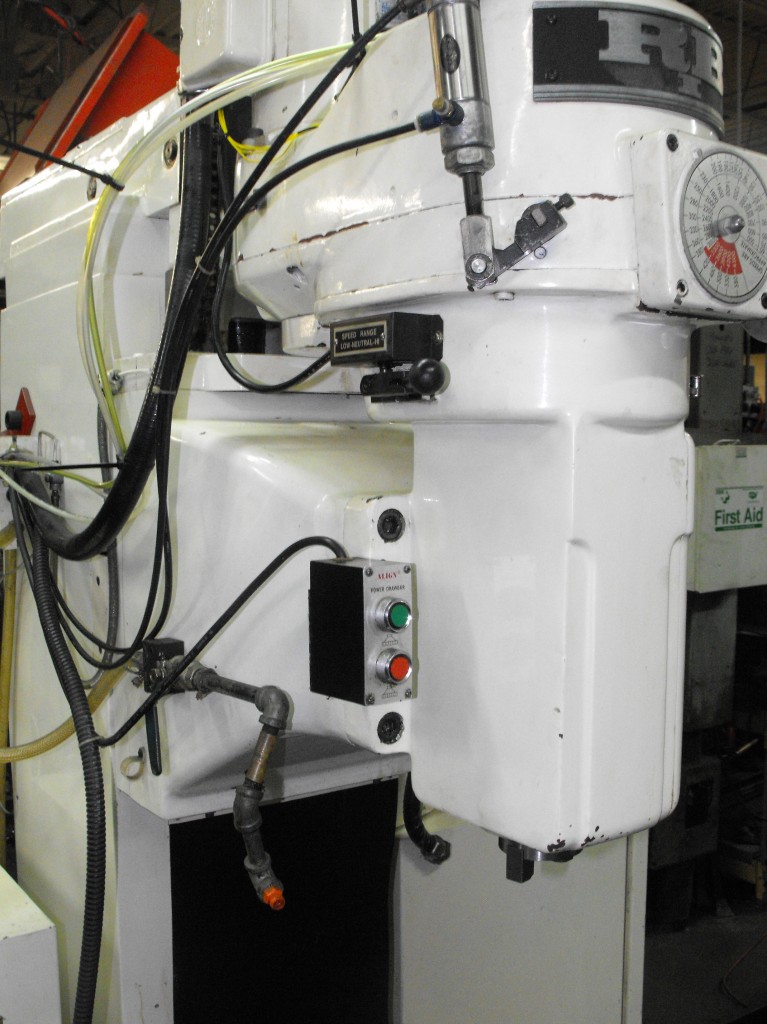

. PNEUMATIC SPINDLE BRAKE & POWER DRAW BAR
. COOLANT SYSTEM
. MISC TOOL HOLDERS
. HOLDER W/ COLLET SET ( 1″ MAX )
. HEAVY BOX WAY DESIGN
. AUTO LUBE SYSTEM
RS 232 PORT
OVERALL DIMENSIONS 73″W X 64″D X 80″H
ALIGN POWER DRAWBAR (ASTRO AIR TOOL)

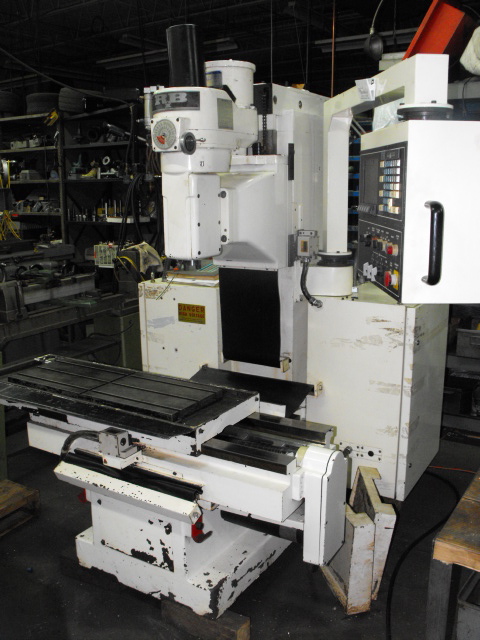

THIS IS BUILT BY LONG CHANG MCHY
MFG MODEL: FIRST 305VS
ELECTRICS: 230/3/60 WEIGHT: 5,500 LBS
LOCATION : FOB BRISTOL, CT
