WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #12069
SERIAL #X3906002
YEAR BUILT: 2000
SPECIFICATIONS
SWING OVER BED 24″
SWING OVER CROSS SLIDE 14.5″
DISTANCE BETWEEN CENTERS 60″
SPINDLE SPEEDS 40 TO 1,800 RPM
SPINDLE NOSE A1-8
CROSS SLIDE TRAVEL 12.2″
CARRIAGE TRAVEL 59″
TAILSTOCK QUILL 3″ DIA
TAILSTOCK QUILL TRAVEL 6″
QUILL TAPER #5 MT
SPINDLE DRIVE MOTOR 20 HP AC
FEEDRATES 0 TO 200 IPM
EQUIPPED WITH:

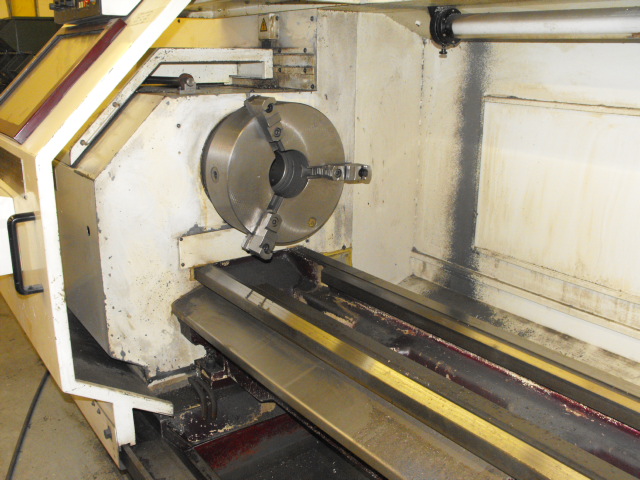

16″ 3 JAW CHUCK
AC INVERTER FOR SPINDLE CONTROL
DC SERVOS FOR X & Y TRAVELS
STEADY REST
COOLANT SYSTEM
DORIAN DROP ON TOOL POST W/ HOLDERS
FLOORSPACE REQUIRED 158 X 64 X 77″ H
ELECTRICS: 220/3/60 WEIGHT 9,000 LBS
FOB BRISTOL, CT 06010
