INVENTORY #: 12045
SERIAL # 543-16
YEAR BUILT: 1955
SPECIFICATIONS
SWING OVER BED 12-3/4″
DISTANCE BETWEEN CENTERS 37-1/2″
TABLE TRAVERSE RATE 3 TO 144 IPM
GRINDING WHEELS USED 14 X 1-1/2 X 5″ HOLE
GRINDING WHEEL DRIVE MOTOR 3 HP
GRINDING WHEEL SPEED 1,500 RPM
ID SPINDLE WHEEL SPEED 15,000 RPM (MAX)
ID SPINDLE DRIVE MOTOR 1 HP
WORKHEAD SPEEDS 55 TO 495 (VARIABLE)
TAPER IN HEASTOCK & TAILSTOCK #9 JARNO
WORKHEAD DRIVE MOTOR 3/4 HP DC
FLOOR SPACE REQUIRED 59 X 140″
EQUIPPED WITH:
WHEEL MOUNT

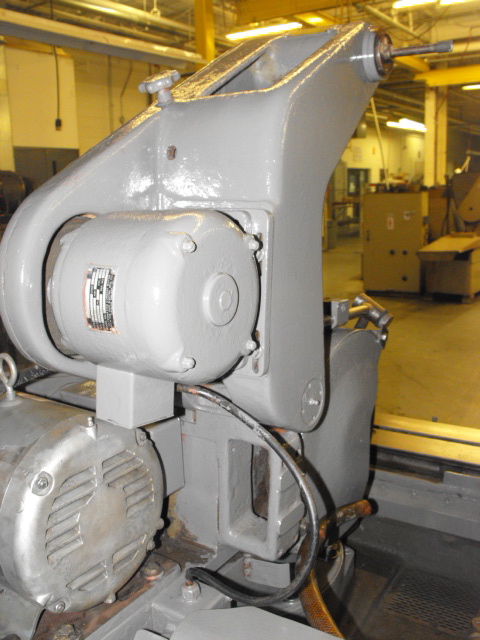

COMPLETE FLIP DOWN ID UNIT
CENTERS / BACKRESTS

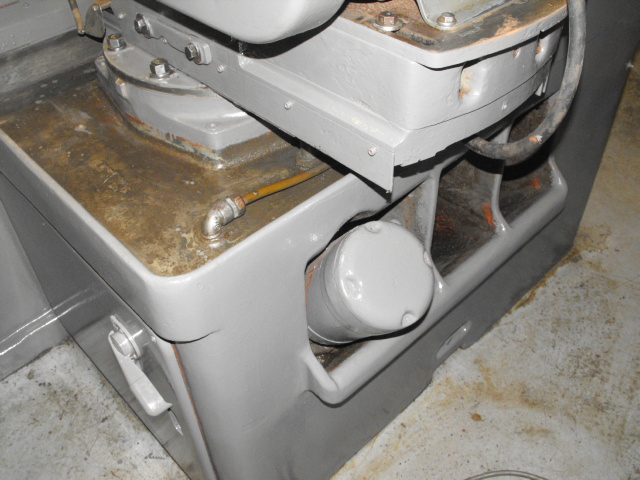

COOLANT SYSTEM
10″ DIA. SOLID FACEPLATE
ELECTRICS: 220*/440/3/60
WEIGHT: 8,500 LBS
LOCATION: BRISTOL, CT USA
FACTORY SPECS HERE:
