WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY # 12010
SERIAL #: 542-00
YEAR BUILT: 1970’S

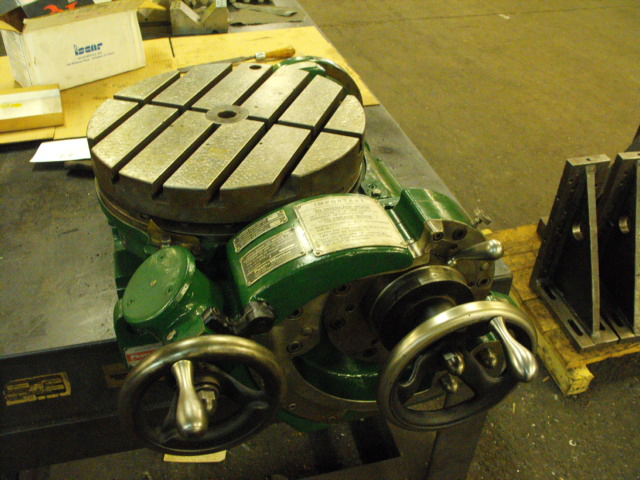

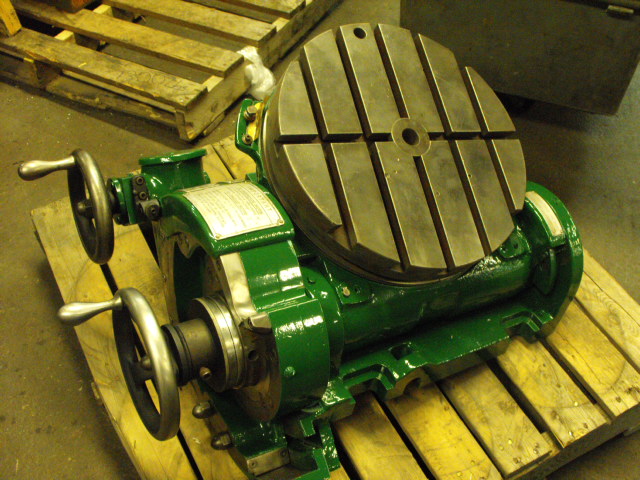

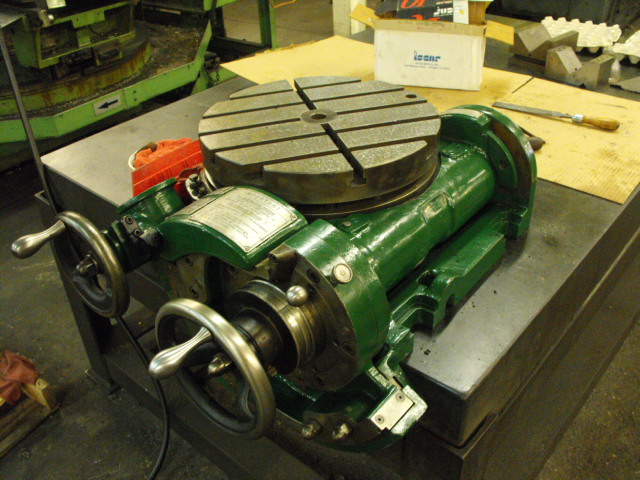

SPECIFICATIONS
CAN BE SET AT ANY DESIRED ANGLE FROM HORIZONTAL TO VERTICAL &
IS ROTATABLE THRU 360 DEGREES.
WORKING SURFACE: 16″ DIAMETER
TABLE HEIGHT, HORIZONTAL POSITION: 8-5/8″
MAX. TILTING RANGE ABOVE HORIZONTAL: 90 DEGREES
CENTER HOLE IN TABLE: #9 B&S
NUMBER OF T-SLOTS: 5 PARALLEL
TILTING GRADUATIONS: DEGREES
TILTING VERNIER GRADUATIONS READ TO: 1 MINUTE
TABLE GRADUATIONS: DEGREES
TABLE DIAL GRADUATIONS READ TO: 1 MINUTE
TABLE VERNIER GRADUATIONS READ TO: 2 SECONDS
RECONDITIONED TO .0002″ FLATNESS & PARALELLISM
WEIGHT: 625 LBS
LOCATION: BRISTOL, CT
