WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #12013
SERIAL #29365
YEAR BUILT: 1960’S
Fully Reconditioned & Re-scraped – 2015
SPECIFICATIONS

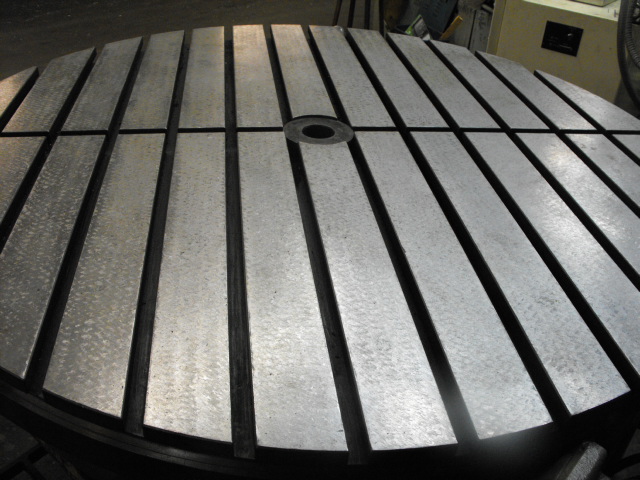

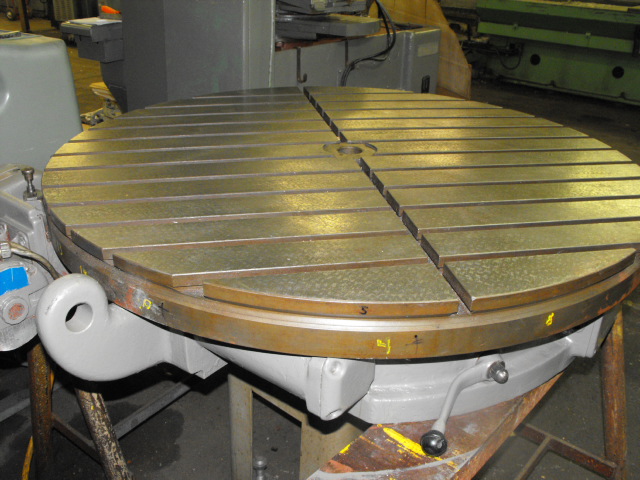

WORKING SURFACE: 50″ DIA
MAXIMUM RECOMMENDED WEIGHT OF WORKPIECE 5,000 LBS.
TABLE HEIGHT 10-9/16″
CENTER HOLE IN TABLE #13 B&S

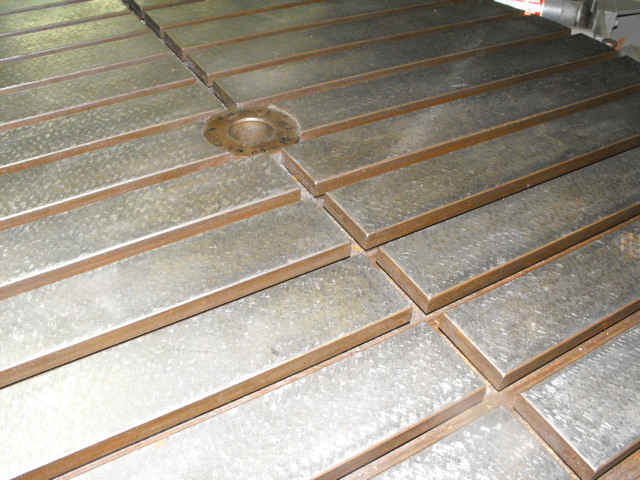

NUMBER OF PARALLEL T-SLOTS 12
TABLE TOP GRADUATIONS: DEGREES
TABLE DIAL GRADUATIONS READ TO 1 MINUTE
TABLE DIAL VERNIER GRADUATIONS READ TO 2 SECONDS

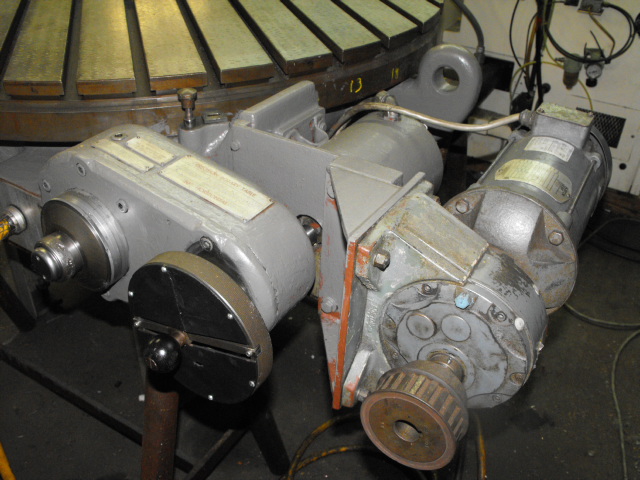

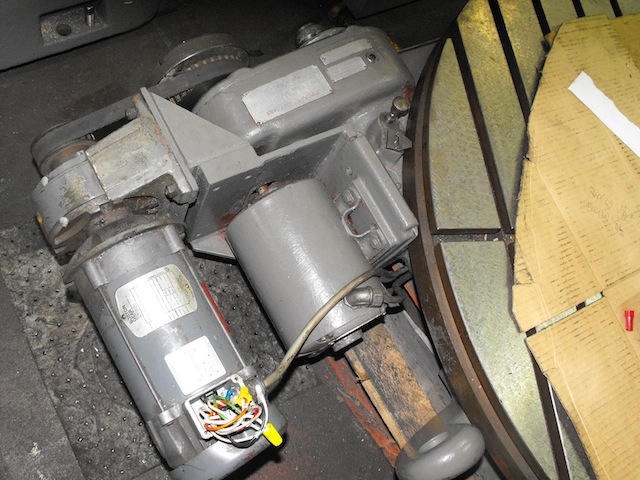

MOTOR DRIVE (FAST TRAVERSE) 3/4 HP 220/440
TABLE DRIVE (SLOW FEED) 1/2 HP DC GEAR MOTOR
EQUIPPED WITH:
. RE-SCRAPED TO .0002” FLATNESS & PARALLLISM
. INPUT SHAFT BACKLASH WITHIN OEM SPECS
. PUSH BUTTON FORWARD / REVERSE CONTROLS

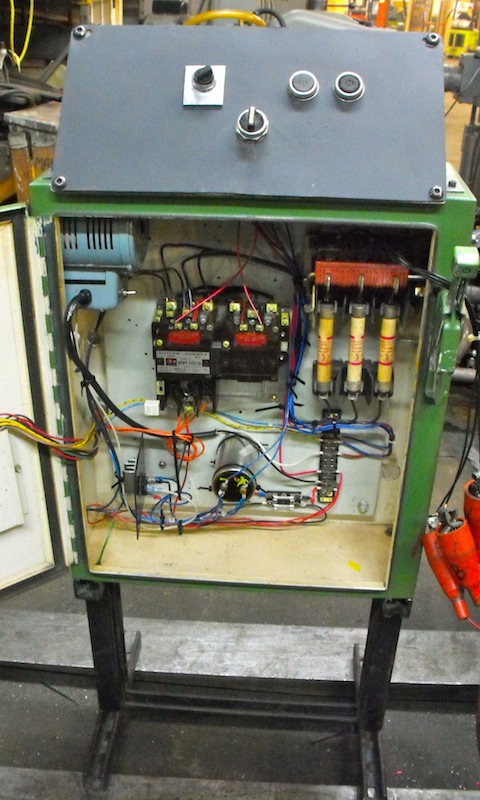

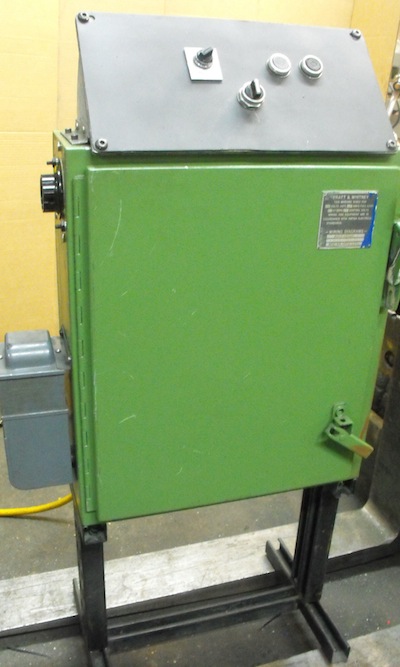

. FREESTANDING ELECTRICAL CABINET 220/440/3/60 INPUT
. RE-CONDITIONED – IN EXCELLENT OVERALL CONDITION
DC GEAR REDUCTION MOTOR & CONTROL PROVIDES VERY SLOW ROTATION OF TABLE TOP FOR LIGHT MILLING, ETC
