WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #12066
SERIAL #28767
Year Built: 1960’s
Reconditioned 2015
SPECIFICATIONS

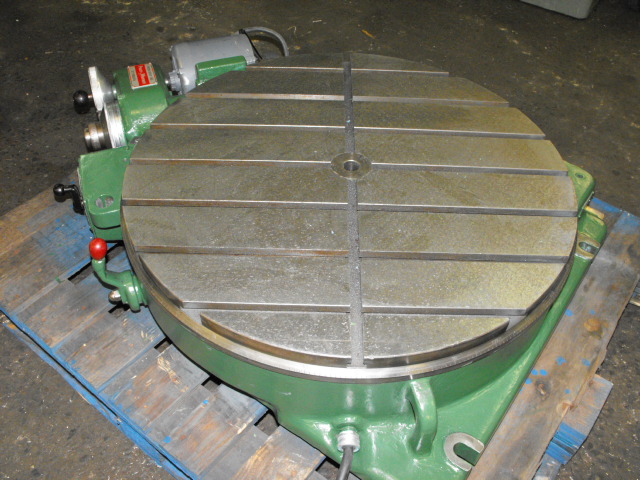

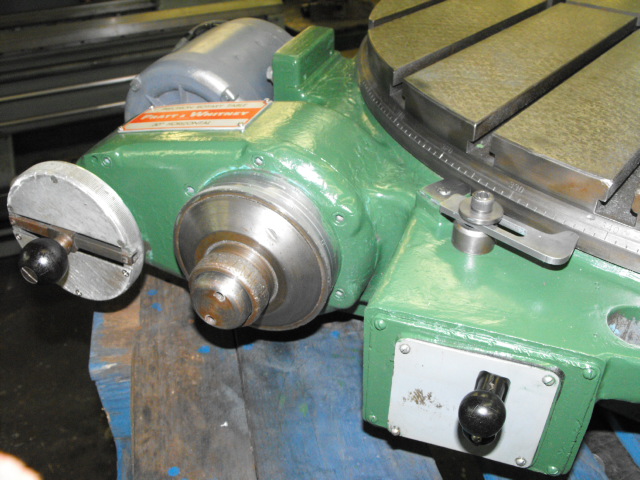

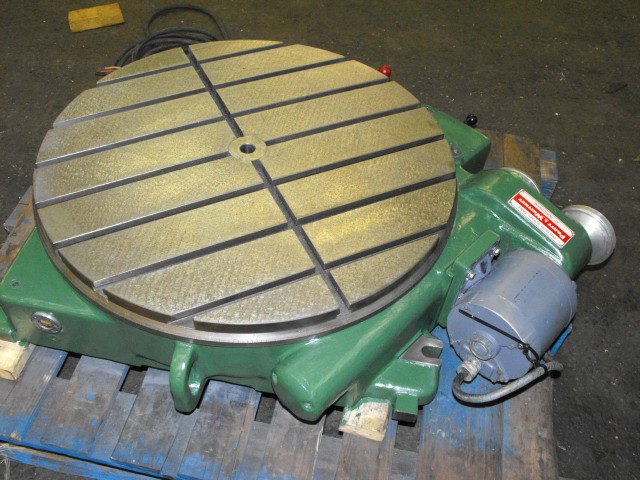

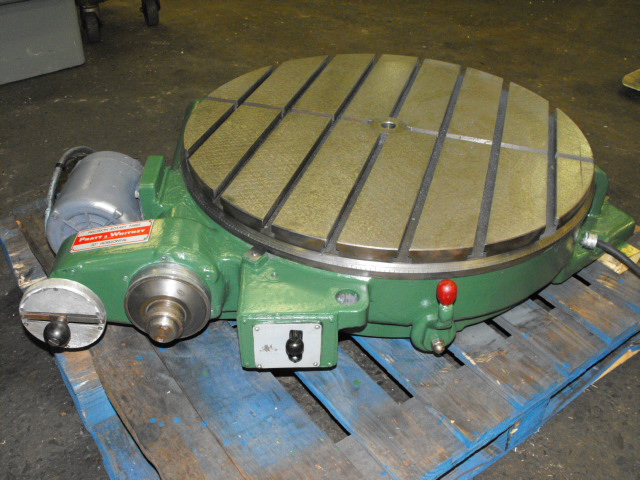

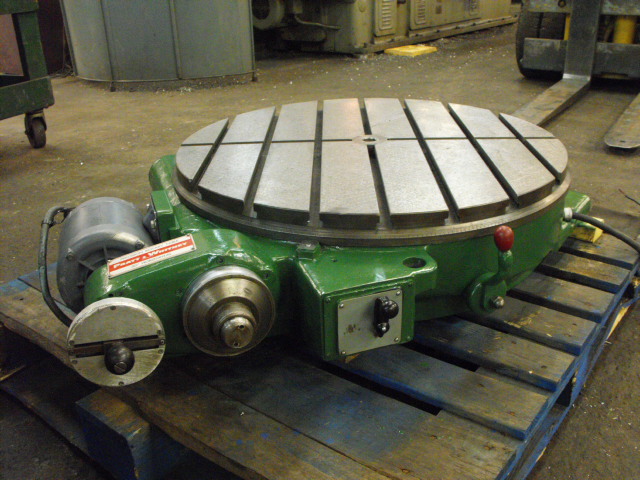

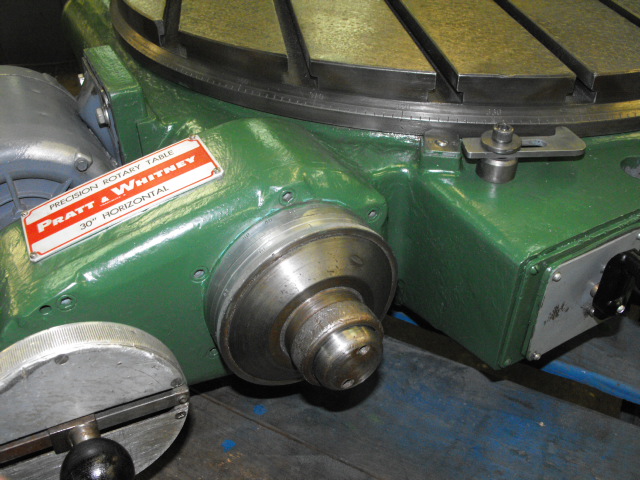

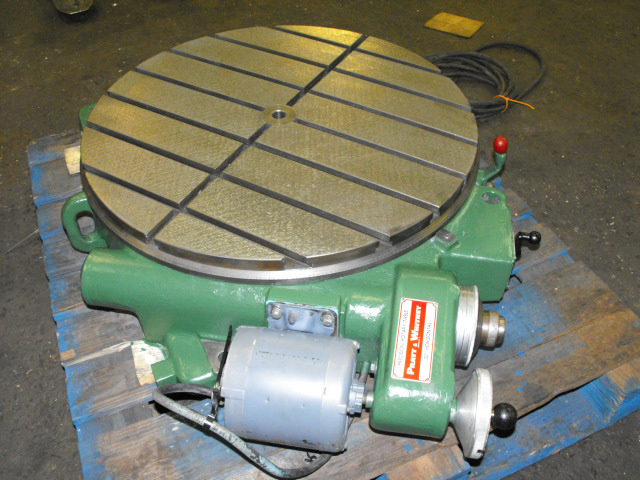

CONTROL & MOTOR BUILT ONTO LEFT SIDE OF TABLE – FACTORY OPTION
WORKING SURFACE 30″
MAX WEIGHT OF WORKPIECE 2,200 LBS
TABLE HEIGHT 8″
CENTER HOLE HARDENED & GROUND #9 B&S

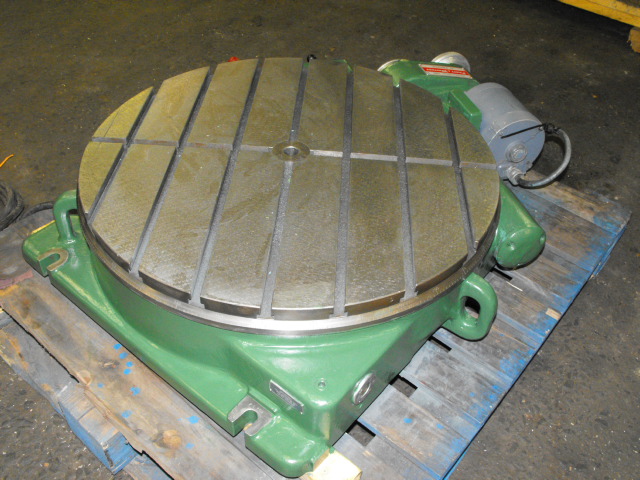

NUMBER OF PARALLEL “T” SLOTS 7
“T” SLOTS, C/C 4″

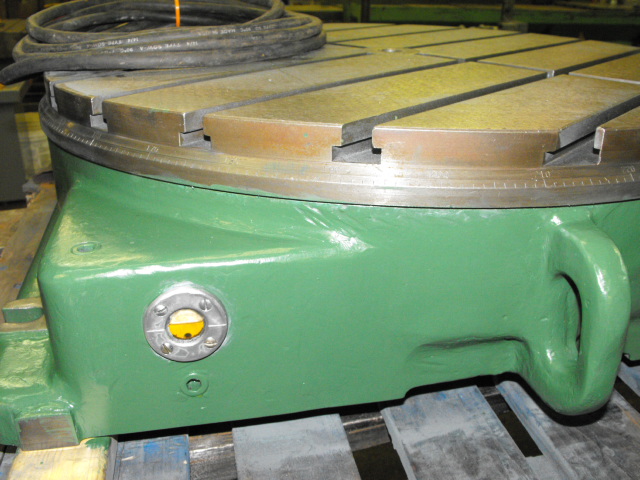

TABLE GRADUATIONS 360 DEGREES
TABLE DIAL GRADUATIONS 1 MINUTE
TABLE DIAL VERNIER GRADUATIONS 2 SECONDS
RAPID TRAVERSE MOTOR DRIVE 1/3 HP 220/440/3
THIS TABLE TOP HAS BEEN RE-SCRAPED
RESCRAPE SPECS:
ROTATION .0003″
FLATNESS .0002″
BACKLASH APPROX 30 SECONDS (WITHIN OEM ORIGINAL SPECS)
EQUIPPED WITH:

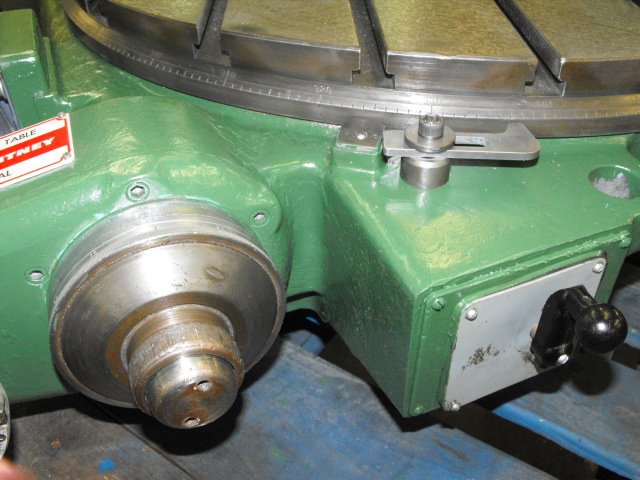

MANUAL DRUM SWITCH CONTROLS TABLE FORWARD / OFF / REVERSE
OPTIONAL:
HAND HELD PUSH BUTTON STATION CONTROLS TABLE ROTATION VIA REVERSING CONTACTORS
INCLUDES FREESTANDING NEMA 12 CONTROL CABINET WITH CONTROL CABLE
OPERATOR CONTROLS TABLE ROTATION FROM SEVERAL FEET AWAY
