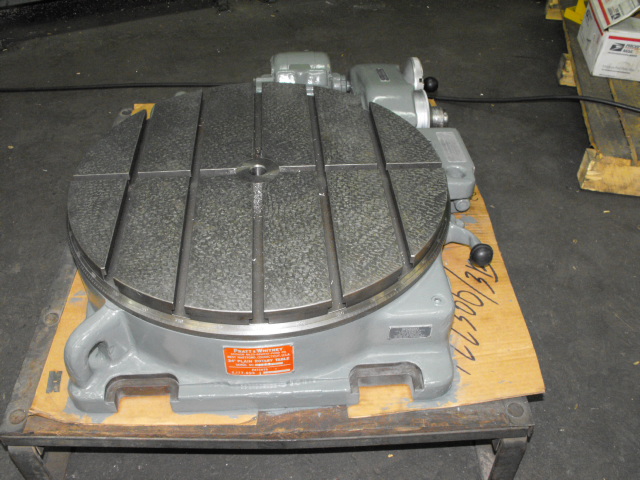

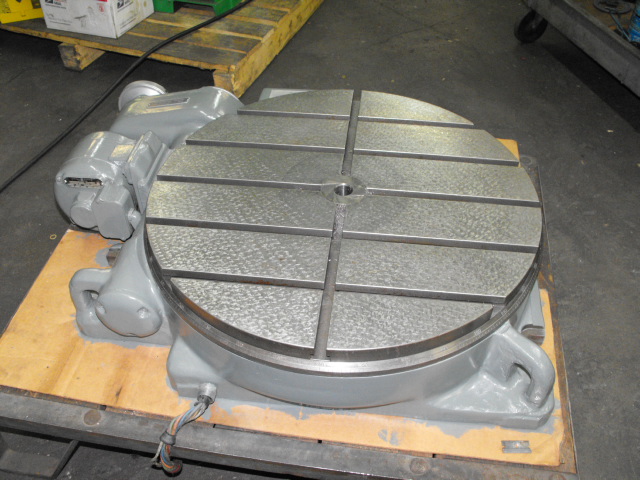

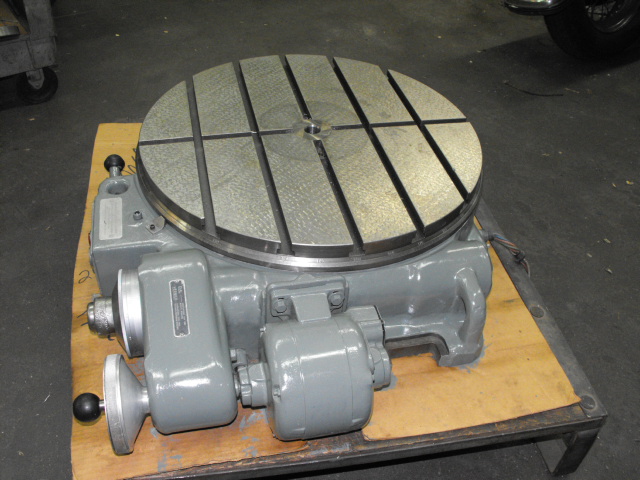

WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #: 11837
SERIAL #: 23550
YEAR BUILT: 1970’S
SPECIFICATIONS
WORKING SURFACE 24″ DIAMETER
MAX WORKPIECE WEIGHT 1,800 LBS
TABLE TOP HEIGHT 8″
CENTER HOLE (HARDENED & GROUND) #9 B&S
TABLE TOP GRADUATIONS DEGREES
TABLE DIAL GRADUATIONS 1 MINUTE
TABLE DIAL VERNIER GRADUATIONS 2 SECONDS
This table is in excellent condition
The table top was rescraped (FLATNESS .0002″)
ELECTRICS: 220/440/3/60 WEIGHT: 540 LBS
LOCATION : FOB BRISTOL, CT
WE OFFER INDEPENDANT ELECTRICAL CONTROLS
WITH HAND HELD PUSH BUTTON PENDANT
WE OFFER THE FOLLOWING FOR YOUR CONSIDERATION:
INVENTORY #: 11869
SERIAL #: 542-00-7362
YEAR BUILT: 1970’S
SPECIFICATIONS
TURNING DIA 1/2″ MAX
TURNING LENGTH 1-1/2″ MAX
SPINDLE MOTOR 3 HP
SPINDLE SPEEDS 34 TO 8,665 RPM
TOOL TURRET 6 POSITON
TOOL TURRET HOLES 5/8″ DIA
DRIVESHAFT MOTOR 1/3 HP
TOOL SLIDES TRAVEL 1-1/8″ MAX
EQUIPPED WITH:
- DINABRAKE
- FRONT & REAR SLIDES
- VERTICAL SLIDE
- MISC TOOLING
- DOGS & CHANGE GEARS
- RAPID PULL OUT
NOTE: SOME STOCK FEED PARTS REMOVED WAS USED ON SECONDARY OR WITH BAR LOADER
